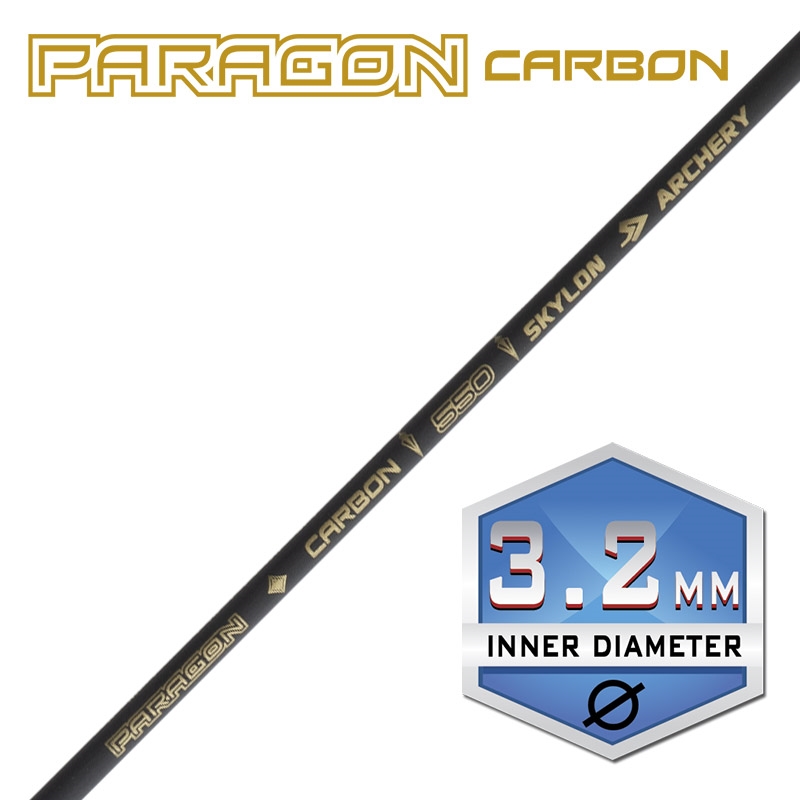

Material: 40-TON Carbon - ID: 3.2mm / .125" - Straightness tolerance: .0015"
|
SPINE
|
OUTSIDE DIAMETER
|
GRAIN PER INCH
|
LENGTH
|
RECOMMENDED POINT
|
|
1.000"
|
4.45mm
|
4.70
|
30"
|
60-70-80gr
|
|
0.900"
|
4.50mm
|
4.81
|
30"
|
60-70-80gr
|
|
0.850"
|
4.55mm
|
4.94
|
30"
|
80-90-100gr
|
|
0.800"
|
4.59mm
|
5.06
|
31"
|
80-90-100gr
|
|
0.750"
|
4.63mm
|
5.31
|
31"
|
80-90-100gr
|
|
0.700"
|
4.67mm
|
5.55
|
31"
|
80-90-100gr
|
|
0.650"
|
4.73mm
|
5.83
|
31"
|
80-90-100gr
|
|
0.600"
|
4.78mm
|
6.10
|
32"
|
100-110-120gr
|
|
0.550"
|
4.84mm
|
6.50
|
32"
|
100-110-120gr
|
|
0.500"
|
4.90mm
|
6.90
|
32"
|
100-110-120gr
|
|
0.450"
|
5.04mm
|
7.42
|
32"
|
100-110-120gr
|
|
0.400"
|
5.17mm
|
7.93
|
32"
|
100-110-120gr
|
|
0.350"
|
5.25mm
|
8.47
|
32"
|
100-110-120gr
|
